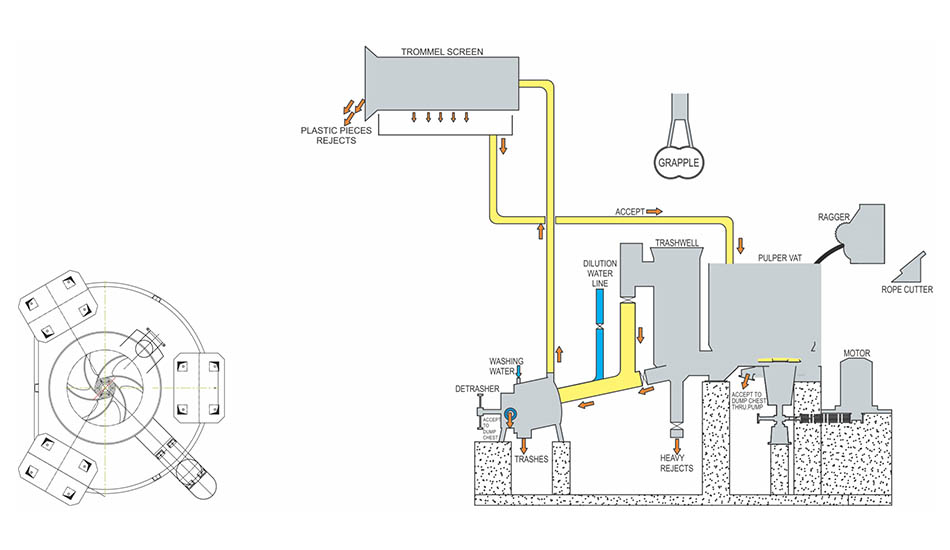

D-Pulper

D pulper

1. The D-Pulper is suitable for the furnish of OCC, AOCC, box board cuttings, virgin pulp, mixed waste, broke kraft, etc.
2. Thu tub of D-pulper is made up in the shape D. One side of the tub is straight wall and remaining portion is round. This D-shape of the pulper creates excellent turbulence in the tub which helps to reduce the dwelling time.
3. The straight wall of D disturbs the circular flow pattern in the round tub and displace the vortex which creates strong nip to submerge the bales of paper.

Benefits :
Easy separation of fiber with minimum fiber loss.
D shape provides better vortex to stock and excellently slushes the pulp.
The operating consistency of this pulperis 4-6%.
Low specific power consumption.
It performs continuous operation.
The trashwell can be equipped as per requirement.
Low maintenance.
Removes plastic in large pieces with little disintegration.
Suitable for medium as well as high capacity plants.

      Capacity & Sizes :
Capacity 12 M3 16 M3 20 M3 25 M3 30 M3 40 M3
TPD 60-75 80-110 110-160 160-250 250-300 350-450
Consistency %     4-6%
Power (Kw) 120 160 185 220 280 315
