Pressure screen manufacturer

Up-flow pressure screen

Pressure Screen For pulp & paper mill

1. Upflow pressure screen can be used for screening of various kind of material such as wood pulp, waste paper pulp, etc.
2. This screen is specially designed as upflow screen due to the features of the impurities in waste paper. This screen is more suitable for the coarse screening.

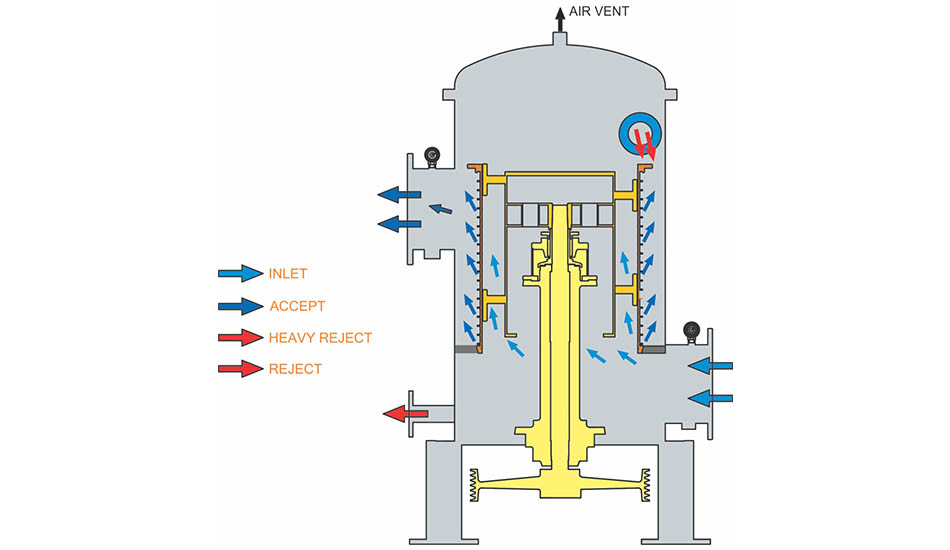

3. Pulp flows into pressure screen from lower side to upper side and comes out from the upper portion of the screen.
4. This screen solves the problem of coarse impurities staying too long in the screening part and then easily mixed with clean pulp again.
5. This screen can work with the different designs of rotors.
6. It became an indispensable screening equipment to screen out the rejects in stock preparation.
7. The working consistency of this screen is 1.2-4%.
8. The material of construction is SS-304 and M.S.

Features :
Operates at consistency 1.2-4%
Low power consumption.
Improved screening efficiency.
Easy to install and operate.
Low maintenance.
More suitable for coarse screening of waste paper.
Improved quality of paper.
Less damage to rotor and baskets.
Minimum turbulence and no vibrations.
Higher production capacity.

Sr. No.; 1. 2. 3. 4 5 6
Model SUFP-400 SUFP-500 SUFP-600 SUFP-800 SUFP-1000 SUFP-1200
Capacity (T/Day) 45-90 55-105 80-160 120-250 160-450 200-550
Power (KW/1440 RPM) 30-55 37-75 75-110 110-200 160-250 200-250
